Solid Profiles

MicroPoly^® Solid Profiles

MicroPoly Lubricants are solid, and can be processed into a variety of shapes with various polymer processing techniques.

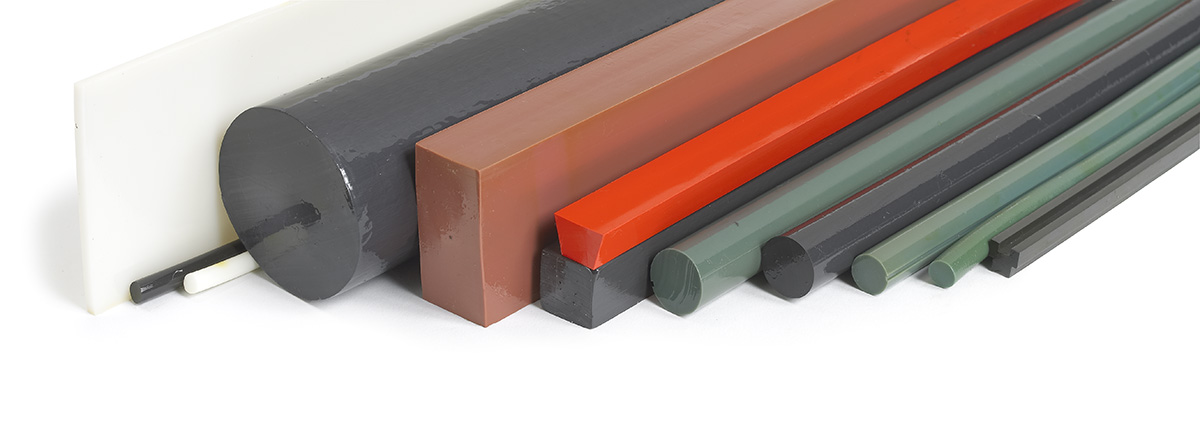

Standard MicroPoly Solid Profiles

Typical Applications for MicroPoly Standard Profiles:

Bushings
Wear plates
Chain lubrication
Wheel flange lubrication
Spherical plain bearing lubrication

Nominal Size	Cross-section	Special Order Sizes Below
3.3″	round	Nominal Size	Cross-section
2.35″	round	5/16″	round
1″	round	20 mm	round
3/4″	round	13 mm	round
5/8″	round	9 mm	round
1/2″	round	0.061″ x 2.6″	rectangle
1/4″	round
1/8″	square
17 mm	round
1″ x 2″	rectangle
1 11/16″ x 3/4″	rectangle
3/4″ x 1 3/4″	rectangle
0.18″ x 3.0″	rectangle
1/2″ x 4″	rectangle
1″ x 4″	rectangle

Profiles are available in a variety of lengths. Minimum order quantities may apply.

These profiles are available in MicroPoly formulas: MPI-0779 and MPF-0696

MicroPoly^® Custom Profiles

MicroPoly solid profiles can be custom-made for specific lubrication applications. Some examples shown below are profiles that were extruded and cut to length; others were machined to customer specifications; and some were punched from MicroPoly sheets. Many of the applications have replaced felt based lubricators. MicroPoly eliminates the need for re-oiling and spillage that can occur with conventional lubrication systems.

Our Engineering Staff can work with you to design specific profiles to meet your lubrication needs.

Typical Applications for MicroPoly Custom Profiles:
